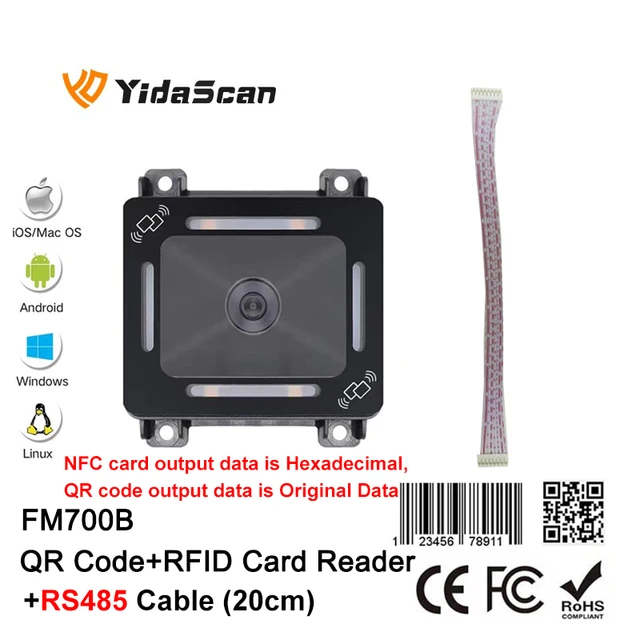

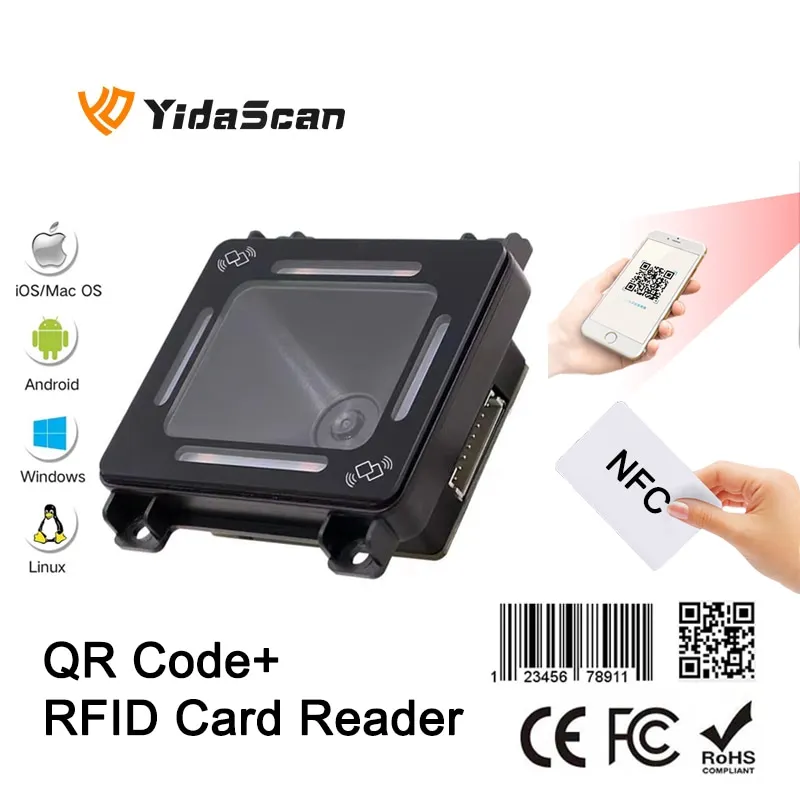

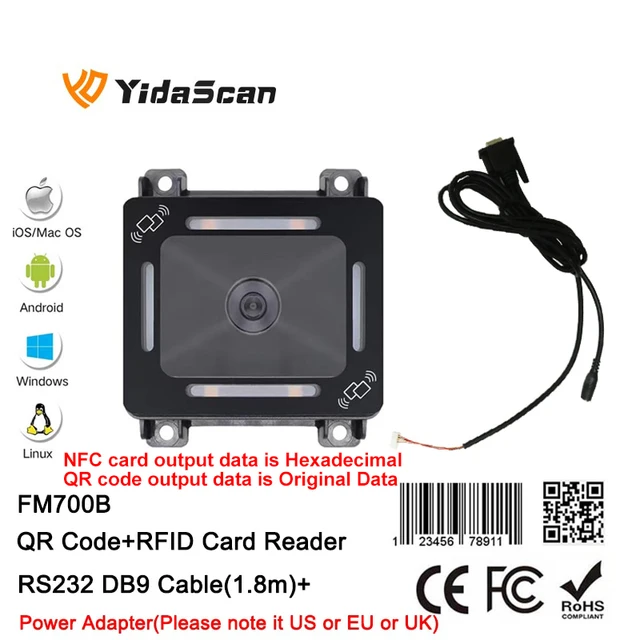

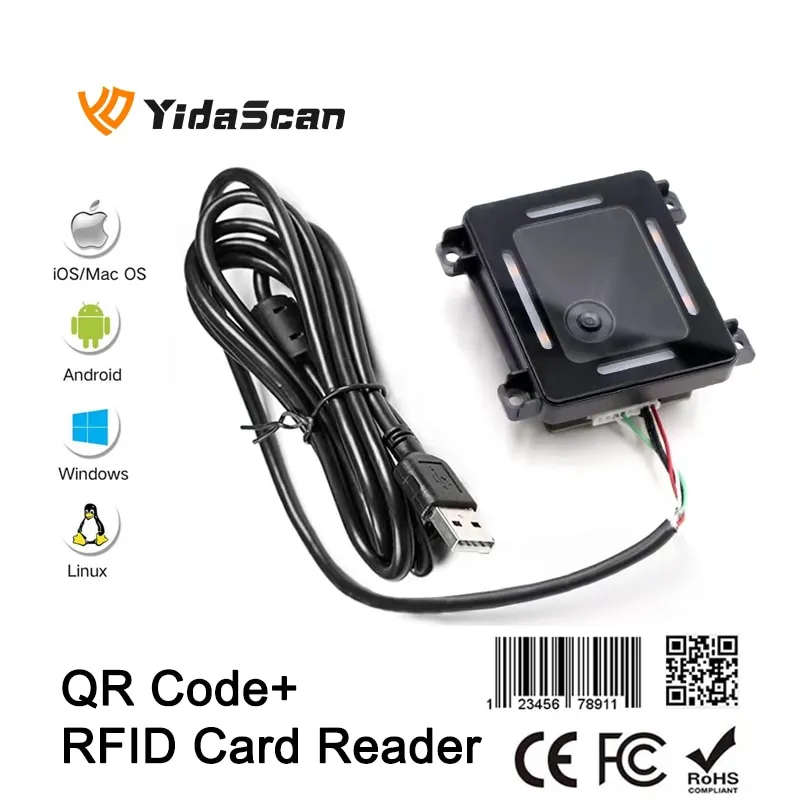

FM700B QR Code RFID Card Reader NFC 1D 2D QR Code Reader Access Control Barcode Scanner USB RS232 Wiegand for Kiosk Turnstile
$176.22
Description
- Scanning Light Source: Natural Light+LED
- Novelty: New
- Product Type: Bar Code Scanner
- Model Number: FM700B
- Colour Depth: 32 Bit
- Scan Breadth: A4
- Type: Barcode Scanner
- Interface Type: USB, RS232
- Scan Element Type: CMOS
- Scan Speed: 200 scans/second
- Optical Resolution: 640*480
- Brand Name: YidaScan
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Series: YidaScan FM700B
- Interface: TTL-232, USB, RS-232, Wiegand
- NFC Protocol: ISO14443A, ISO14443B, ISO15693
- NFC Frequency: 13.56MHz

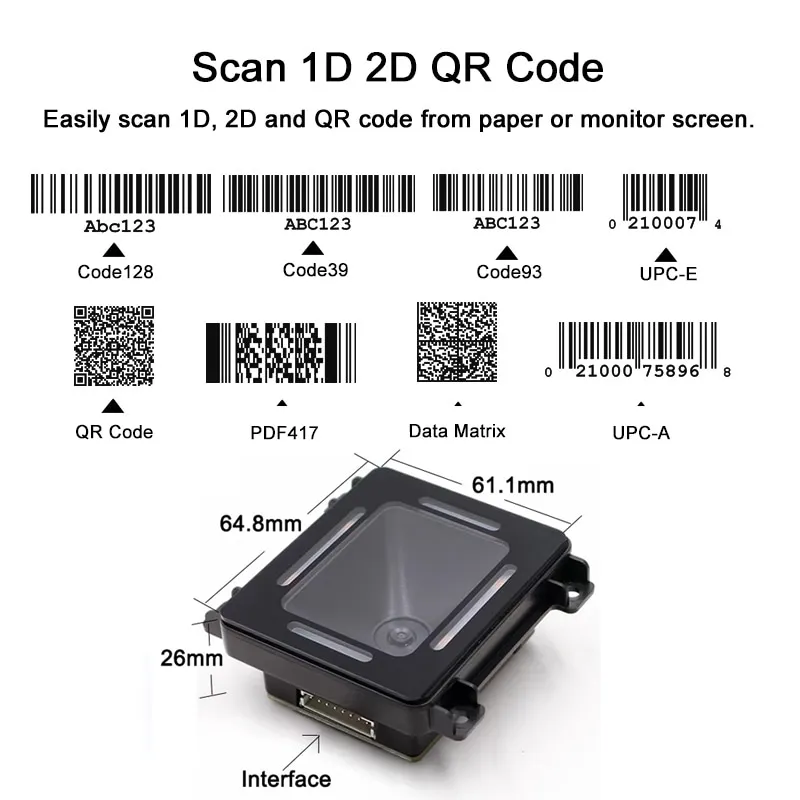

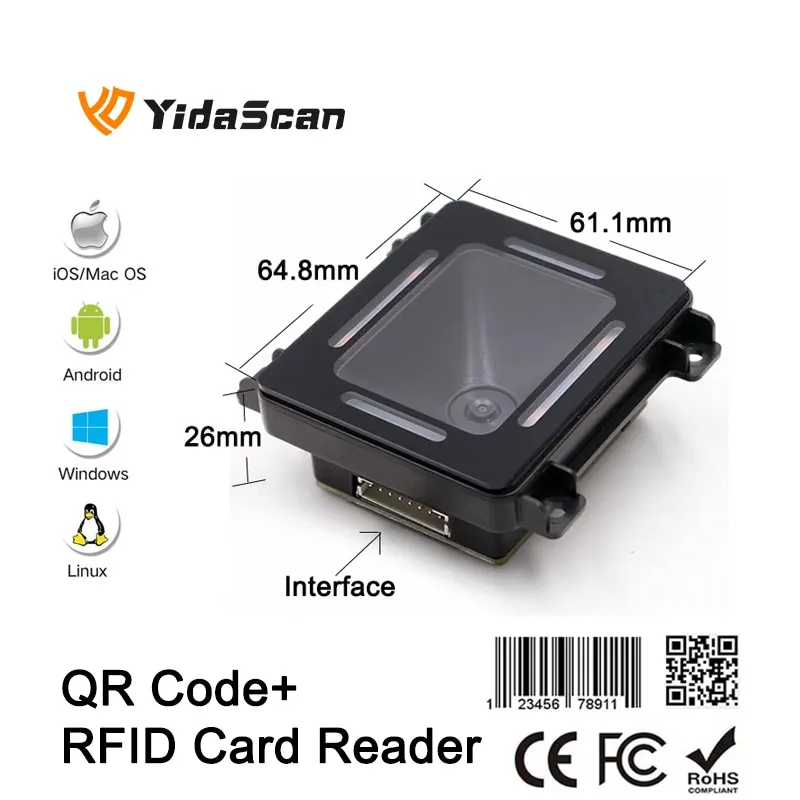

- Dimension: 61.1mm(W)*64.8mm(D)*26mm(H)
- Net Weight: 30g
- Form Factor: All-in-One
- Decode Capability: 1D, 2D, QR
- Type: Barcode Scan Engine
- Compatible System: Windows XP, 7, 8, 10, Linux, Android, MacOS

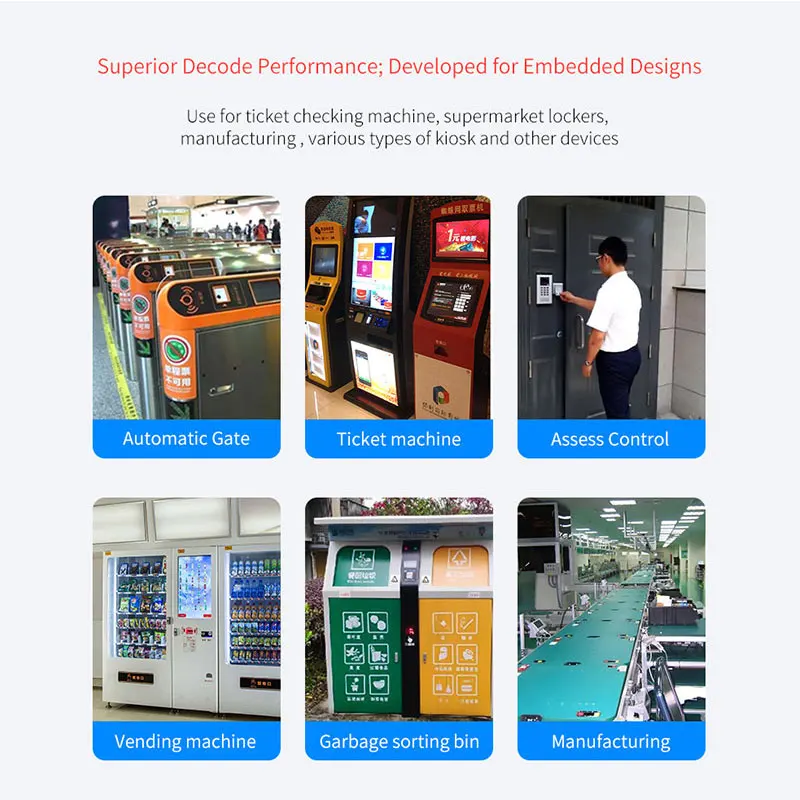

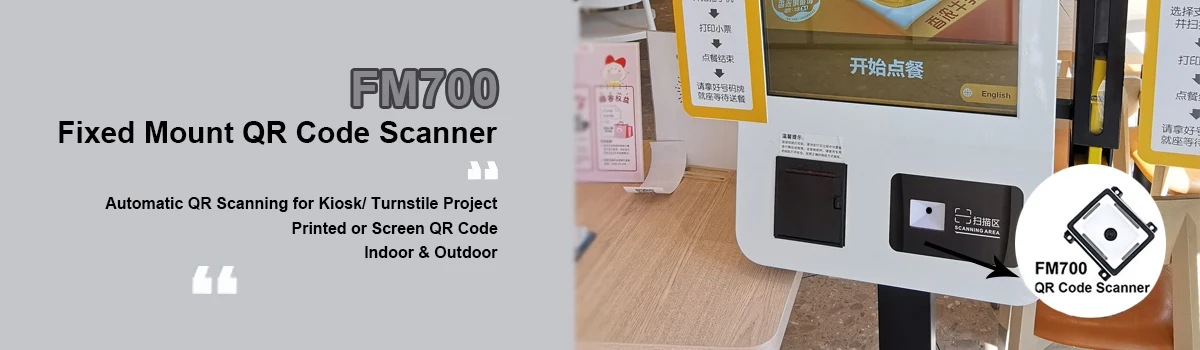

- Project: Self-service Kiosk, Turnstile, Access Control
- Part & Accessory Type: USB/RS232/Wiegand Cable
A team of experts who have worked in the field of automatic identification for more than 9 years got together because of the like-minded dream, and from then on, Shenzhen YIDA Auto-ID Technology Co., Ltd. was established.
We are experts in barcode scanning automatic identification, access control identification, video surveillance identification and OEM products.
Mature supply chain, including our own OEM factory and strong after-sale technical support, is our brand YidaScan, based on customer-oriented enterprise guarantee. YidaScan emempower your employees on retail store floors, warehouses and distribution centers, manufacturing facilities and other industries to transform your business with comprehensive data visibility and accuracy.
YidaScan FM700B QR Code RFID Card Reader NFC 1D 2D QR Code Reader Barcode Scanner USB RS232 Wiegand for Kiosk Turnstile
Please noted when you choose the RS232 interface options, which plug type of power adapter do you need? US or EU or UK or AU?
(1).Features:

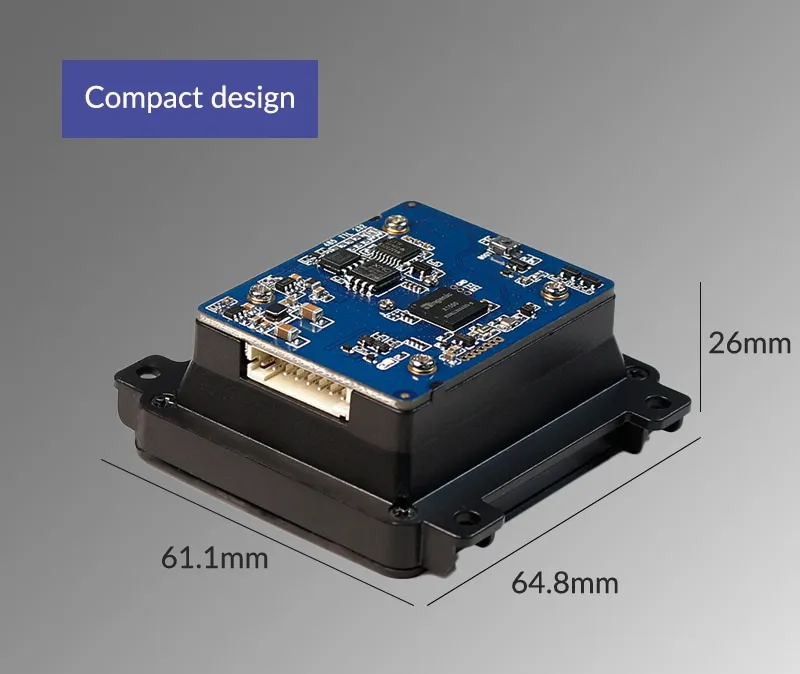

• Ultra-thin, More Compact Construction

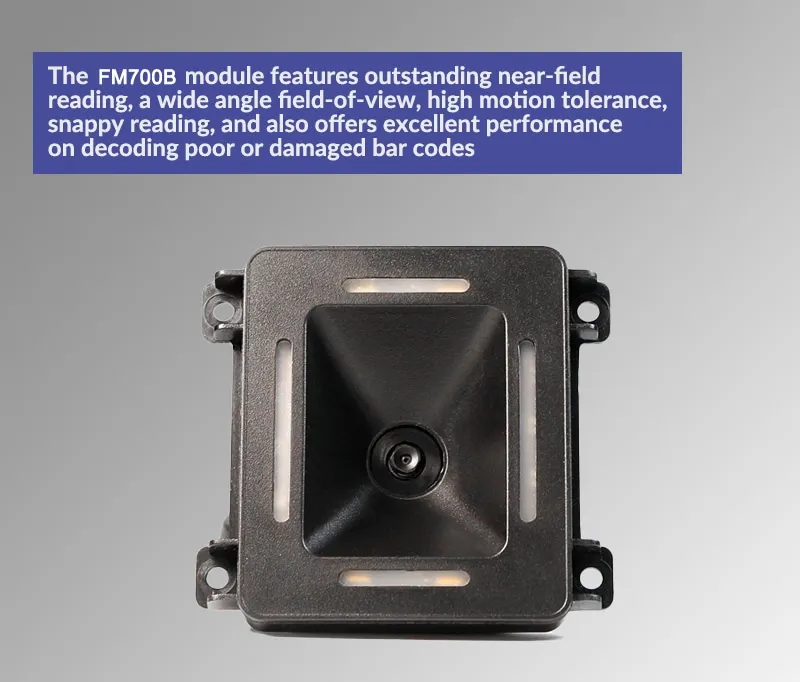

Compact and easy to integrate design. The FM700B is thinner, lighter and more compact, and thus easier to be integrated into any devices.

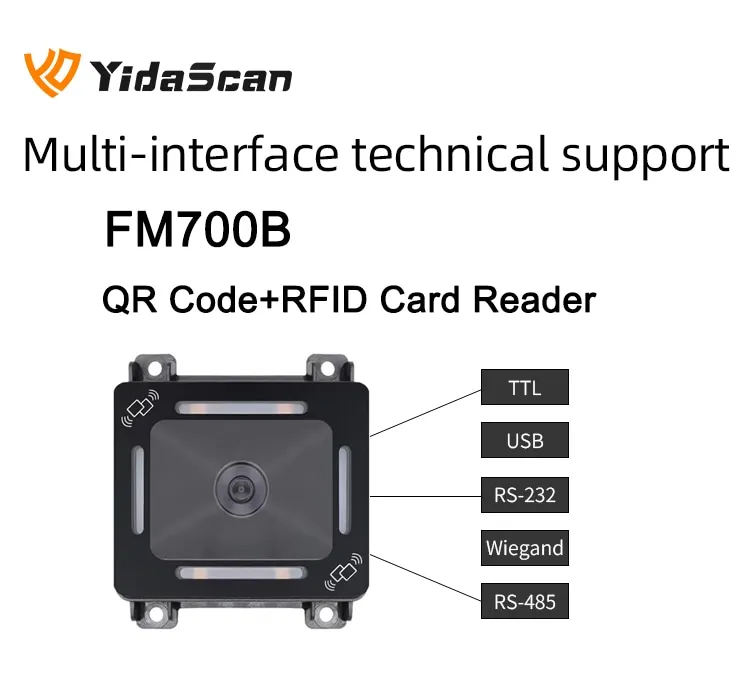

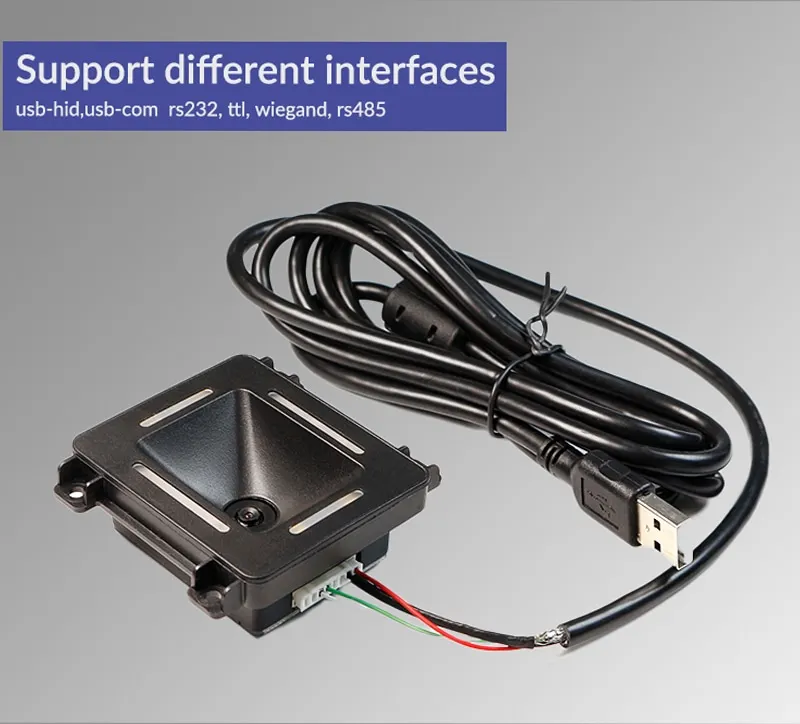

• Multiple Interfaces
The FM700 supports TTL-232, USB, RS-232, Wiegand interfaces to meet diverse customer needs.
• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

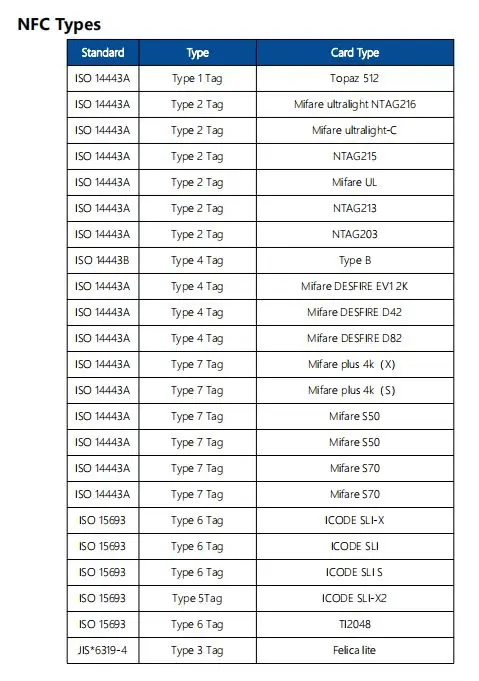

• Supported NFC, more than 20 type of IC cards
The RFID supported protocol is ISO14443A & ISO14443B & ISO15693, the RFID frequency is 13.56MHz.
• OEM Development
Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.
(2).Specification:
|
Performance |
Image Sensor |
640*480 CMOS |
||
|
Illumination |

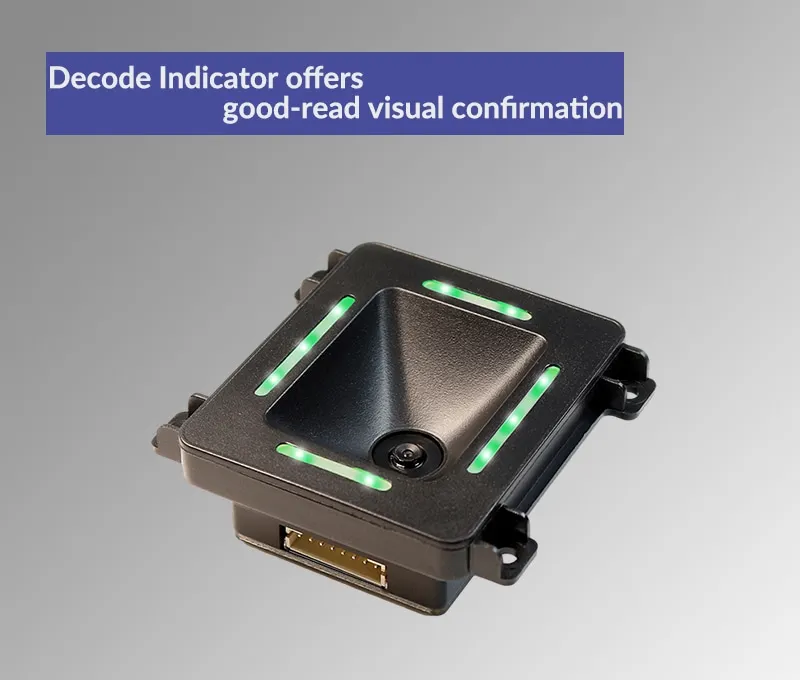

Two Illumination LED+Two Decode Indicator LED |
|||
|
Symbologies |
2D |
(PDF417), (QR Code), (Micro QR), (Data Matrix), (Hanxi code) |
||
|
1D |
(Codabar), (Code 39), (Code 32), (Interleaved 2 of 5), (Industrial 2 of 5), (Matrix 2 of 5), (Standard 2 of 5), (Code 93), (Code 11), (Code 128), (UPC-A), (UPC-E), (EAN/JAN-8), (EAN/JAN-13), (GS1 DataBar(RSS14)) |
|||
|
NFC Range |
0mm-40mm |
|||
|
NFC Protocol |
ISO14443A & ISO14443B & ISO15693 |
|||
|
NFC Frequency |
13.56MHz |
|||
|
Typical Decode Range* |
EAN-13 (13mil) |
5mm~90mm（barcode：31mm*7mm） |
||
|
PDF417 (6mil) |
5mm~55mm（barcode：14mm*7mm） |
|||
|
Code39 (5mil) |
18mm~45mm（barcode：27mm*8mm） |
|||
|
Data Matrix (10mil) |
5mm~60mm（barcode：5mm*5mm） |
|||
|
QR Code (15mil) |
5mm~80mm（barcode：10mm*10mm） |
|||
|
Min Print Contract* |
≥20% |
|||
|
Scan Angle** |
Skew±70°，Pitch±70°，Roll 360° |
|||
|
FOV |
Diagonal 87.1°，Horizontal 74°，Vertical 65° |
|||
|
Electronic |

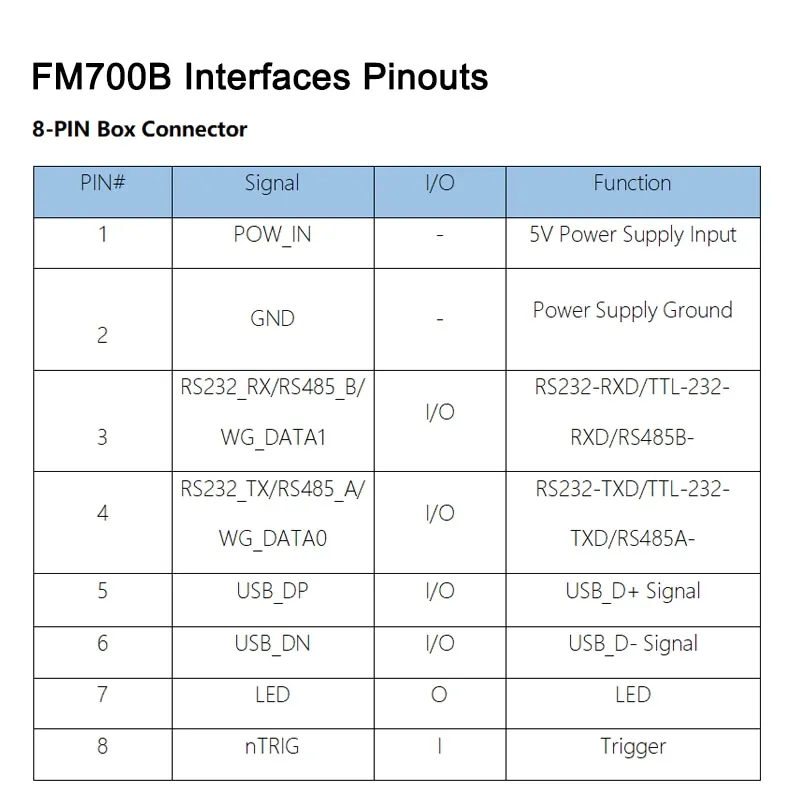

Interface |
TTL-232, USB, RS232 , RS485, Wiegand |
||
|
Dimension(mm) Net Weight Packing Weight |
61.1mm(W)×64.8mm(D)×26mm(H) 30g USB:159g, RS232:234g |
|||
|
Operating Voltage |
5VDC±5% |
|||
|
Power |
1500mW(Typical) |
|||
|
Current@5 VDC |
Operating |
300A(RMS Typical)，400mA(RMS Max) |
||
|
Standby |
130mA |
|||
|
Environmental |
Operating Temperature |
-10℃~+60℃ |
||
|
Storage Temperature |
-40℃~+70℃ |
|||
|
Operating Humidity |
5%~95%（Non-Condesing） |
|||
|
Embient Light |
0~100,000LUX |
|||
|
Accessories |
Cable |
USB |
USB Cable |
|
|
RS-232 |
RS232 Cable |
|||
|
Wiegand |
Wiegand 26/34 bits Cable |
* Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.
** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
(3).Package Contains:
1x Barcode Scanner

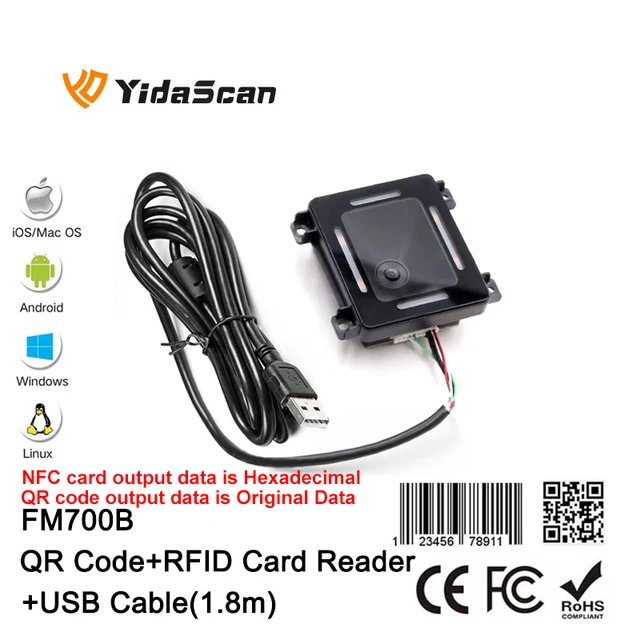

1x USB Cable(options)
1x RS232 Cable+Power adapter(options)

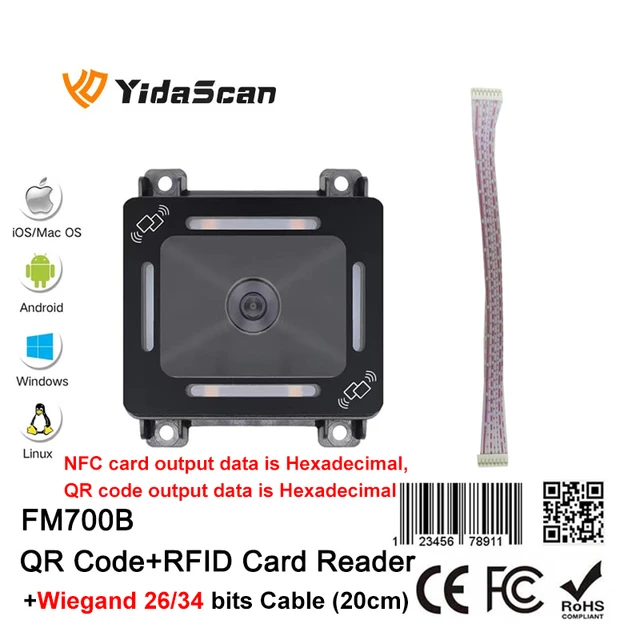

1x Wiegand 26/34 Bits Cable(options)
1x User Guide
1x Warranty Card
